Galvanised and Powder Coated Wire Mesh Production Line
Welded Mesh Machine works by welding galvanized iron wire or iron wire together. Our welders can be used to produce galvanized welded wire, plastic coated welded wire mesh, fence panels and welded steel reinforcing mesh, light or heavy types. Hole ranges from 1/4 inch to 8 inch. This plant is designed for light type welded mesh galvanized and plastic coated. Holes can be either square or rectangular.

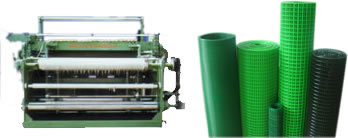

Wire Mesh Machine for Production of Green PVC Coated Welded Mesh

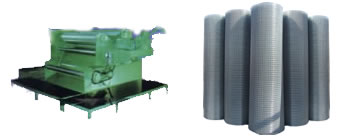

Galvanized and Black iron welded square hole mesh machine
Plant for Welded Mesh with Holes Ranging from 1/4 to 1/2 inch:
| Welded width(mm) | 914.4, 1219.2, 1524('36', '48', '60',) |
| Mesh(mm) | 6.35 - 12.7( 1/4,- 1/2,) |
| Welded diameter(mm) | F0.54 - F1.0(BWG24 - BWG19) |
| Welded speed(Mesh/Min) | =30- 60( radial ) |
| Power | 3+N~50- 60Hz 80/220V±10%=250 - 315KVA |
| Welded transformer capacity | 50KVA × 3 60KVA × 4 60KVA × 4 |
Welding Machine for Holes Ranging from 1/2 to 4 inch:
| Welded width(mm) | 914.4,1219.2,1524('36', '48', '60',) |
| Mesh(mm) | 12.7 - 101.6( 1/2,- 4,,) |
| Welded diameter(mm) | F0.8 - F2.0(BWG21 - BWG14) |
| Welded speed(Mesh/Min) | =30- 60( radial ) |
| Power | 3+N~50- 60Hz 380/220V±10%=250 - 315KVA |
| Welded transformer capacity | 50KVA × 3 60KVA × 4 60KVA × 5 |
Machine for Producing of Welded Wire Mesh with Holes of 2 to 8 Inch:
| Welded width(mm) | 1219.2 1524 1828.2 2133.6 |
| Mesh(mm) | 50.8 - 203.2( 2,- 8,) |
| Welded diameter(mm) | F2.0 - F5.0(BWG24 - BWG19) |
| Welded speed(Mesh/Min) | =20- 45( radial ) |
| Power | 3+N~50- 60Hz 380/220V±10% =250 - 315KVA |
| Welded transformer capacity | 50KVA × 4 60KVA × 5 60KVA × 6 60KVA × 7 |
Welcome to contact us with your specific requirements.
